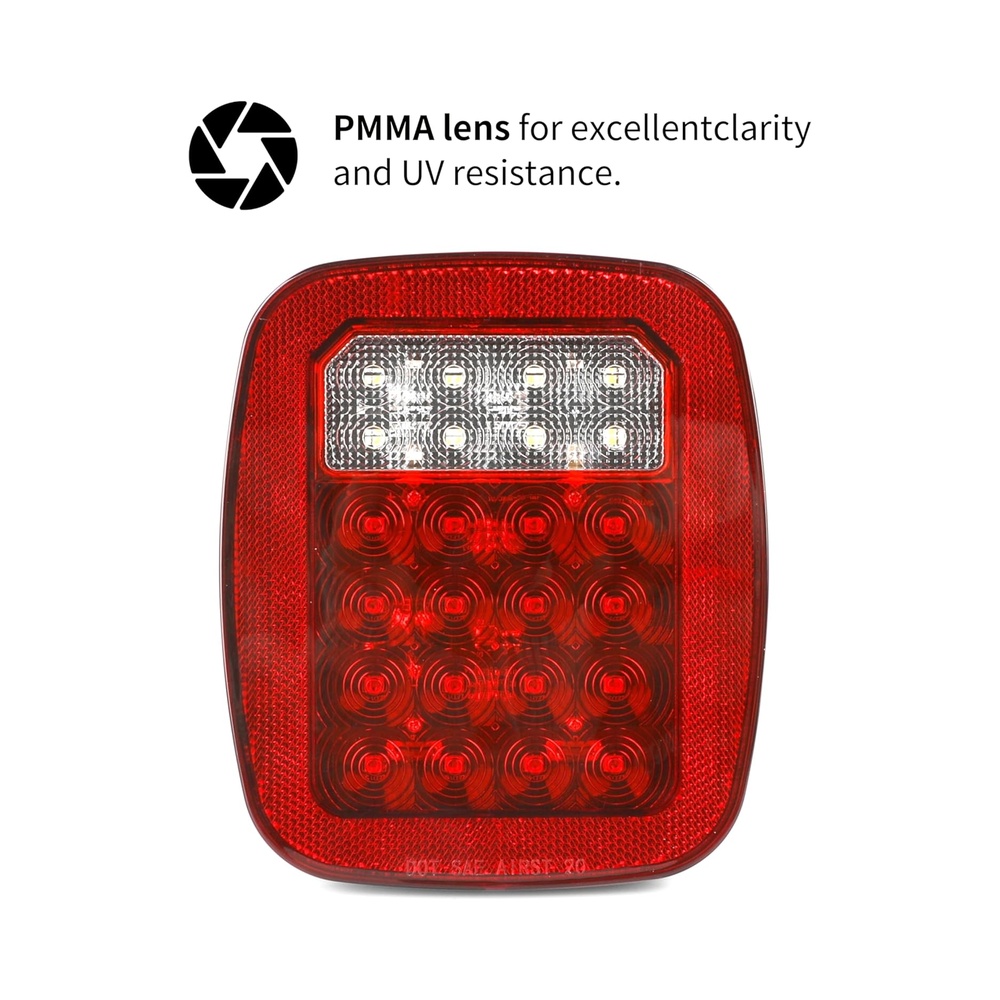

Exceptional Durability: PMMA lenses provide crystal-clear visibility and UV resistance, securely sonic-welded to a rugged ABS housing. Stainless steel front screws enhance corrosion resistance for long-lasting performance.
High-Performance 28-LED Lighting: Each tail light features 38 ultra-bright LEDs—16 red for stop/turn/tail, 18 white for reverse, and 4 white for license plate illumination—offering reliable, long-lasting illumination that outperforms traditional incandescent bulbs.
Universal Fit for 12V Vehicles: Compatible with trucks, trailers, RVs, vans, buses, flatbeds, boats, and more. Minor modifications may be required for Wrangler YJ/CJ installations.
Easy Installation: 3-stud mount design with 4 color-coded hardwired connections (White = Ground; White+Yellow = Backup; White+Black = Low-beam Red + License; White+Red = High-beam Red) ensures a straightforward setup on most vehicles.
DOT Compliant & Street Legal: Meets DOT standards, guaranteeing safe and legal operation on public roads.
Weatherproof & Shock Resistant: Polycarbonate housing and acrylic lenses protect against water, vibration, and road impact for dependable performance in any condition.
Installation Notes: Wiring harness not included; splicing required. Only one tail light includes license plate illumination. Bolt holes slightly larger than stock for versatile mounting.

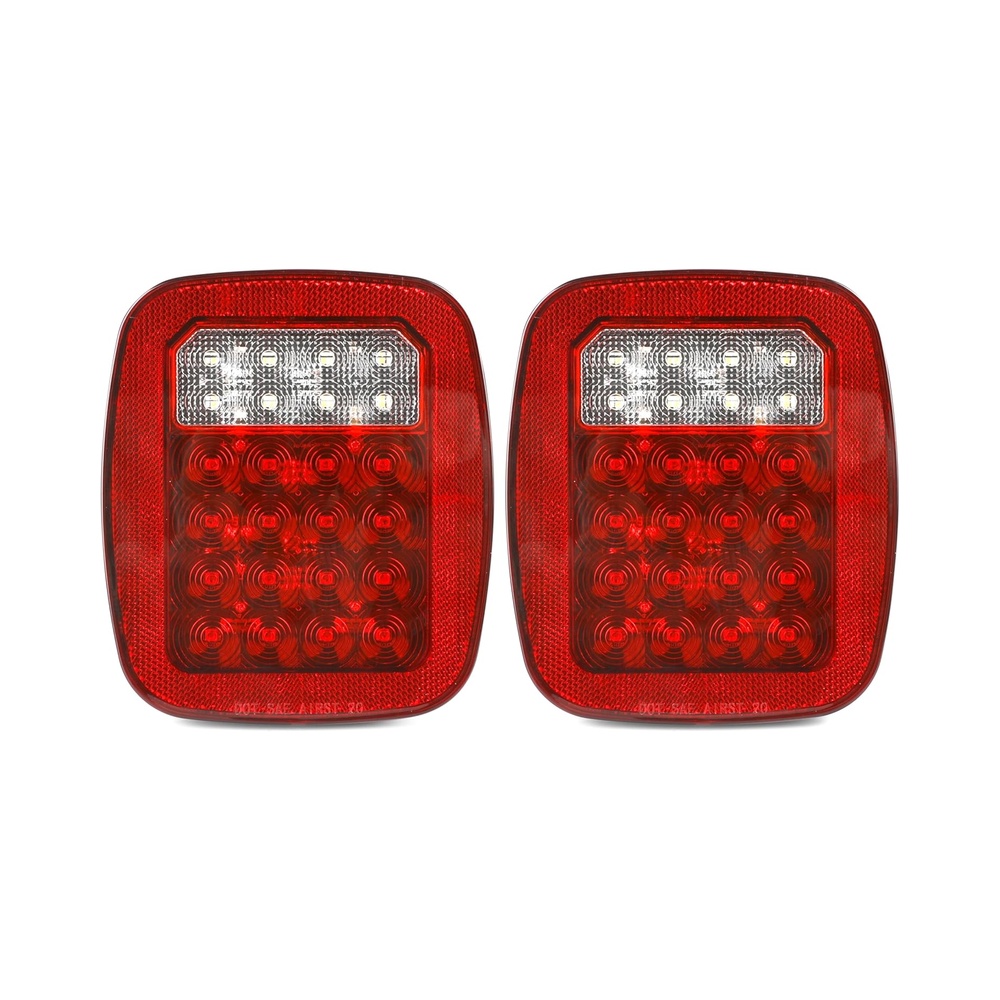

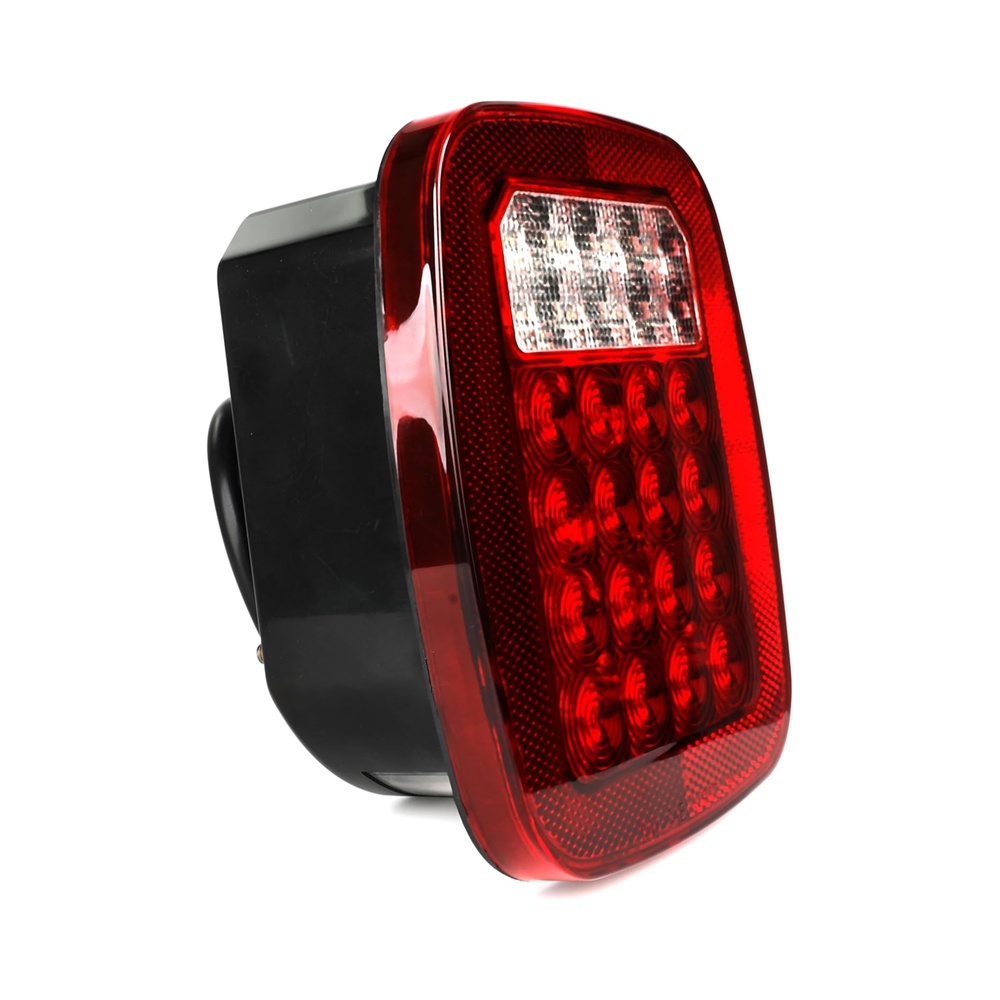

The MaxxHaul Universal Square 12V Combination 28 LED Signal Tail Light is designed for durability and versatility across a wide range of vehicles, including trucks, trailers, RVs, vans, buses, flatbeds, and boats. The tail light is constructed with PMMA lenses and a sonic-welded ABS housing for water protection, shock resistance, and long-lasting performance. Stainless steel front screws provide additional corrosion resistance. The 3-stud mount design and 4 color-coded hardwired connections (White = Ground; White+Yellow = Backup; White+Black = Low-beam Red + License; White+Red = High-beam Red) allow for straightforward installation on most 12V vehicles. The assembly meets DOT standards for street-legal operation and is resistant to water, vibration, and road impacts. Note: Only one tail light includes license plate illumination. Wiring harness is not included, and minor modifications may be required for Wrangler YJ/CJ installations. Bolt holes are slightly larger than stock to accommodate various mounting surfaces.
